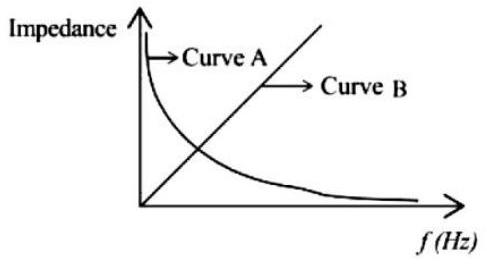

As per the given graph choose the correct representation for curve A and curve B.
{Where ${\mathrm{X}}_{\mathrm{C}}=$ reactance of pure capacitive circuit connected with A.C. source
XL $=$ reactance of pure inductive circuit connected with A.C. source
$\mathrm{R}=$ impedance of pure resistive circuit connected with A.C. source
$\mathrm{Z}=$ Impedance of the LCR series circuit}
