JEE Main · 2026 · 24 Jan 2026 · Shift 1 · Alternating Current

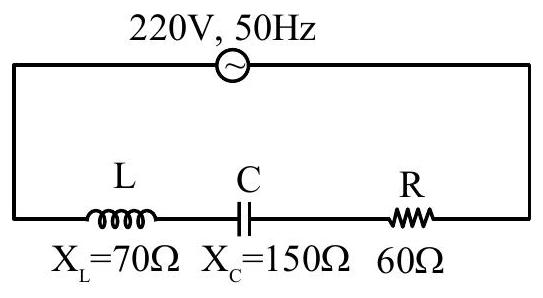

For the series LCR circuit connected with 220 V, 50 Hz a.c source as shown in the figure, the power factor is

\frac{α}{10}

. The value of

α

(A)4
(B)10
(C)6✓ Correct
(D)8

Answer: (C)

Solution

For a series LCR circuit the power factor is

cos ϕ = \frac{R}{Z}

with

Z = R^{2} + (X_{L} - X_{C})^{2}

. The circuit gives

R = 60 Ω

X_{L} = 70 Ω

and

X_{C} = 150 Ω

, so

Z = 6 0^{2} + (70 - 150)^{2} = 3600 + 6400 = 100 Ω

. The power factor is

\frac{60}{100} = \frac{6}{10}

, and comparing with

\frac{α}{10}

gives

α = 6

JEE Main · 2026 · 24 Jan 2026 · Shift 1 · Single correct option
