JEE Main · 2023 · 11 Apr 2023 · Shift 1 · Semiconductors

WhatsApp Email

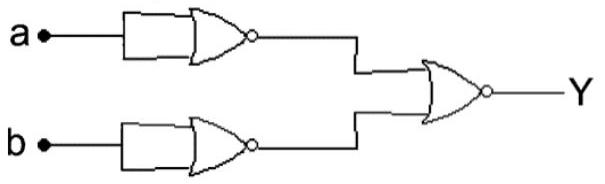

The logic performed by the circuit shown in figure is equivalent to :
  1. (A)AND✓ Correct
  2. (B)NAND
  3. (C)OR
  4. (D)NOR

Answer: (A)

Solution

Each of the first two gates has its single input taken to both terminals, so each one behaves as an inverter and produces and . These feed a NOR gate, whose output is . By De Morgan's theorem . Running through the combinations, only when and and is otherwise. The circuit therefore performs the AND operation.

JEE Main · 2023 · 11 Apr 2023 · Shift 1 · Single correct option
