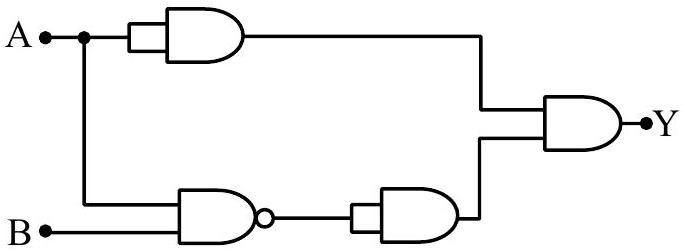

Identify the correct truth table of the given logical circuit.
  1. (A)A | B | Y
    0 | 0 | 0
    0 | 1 | 1
    1 | 0 | 1
    1 | 1 | 0
  2. (B)A | B | Y
    0 | 0 | 1
    0 | 1 | 0
    1 | 0 | 1
    1 | 1 | 0
  3. (C)A | B | Y
    0 | 0 | 1
    0 | 1 | 1
    1 | 0 | 1
    1 | 1 | 0
  4. (D)A | B | Y
    0 | 0 | 0
    0 | 1 | 0
    1 | 0 | 1
    1 | 1 | 0
    ✓ Correct

Answer: (D)

Solution

Trace the two signal paths of the circuit. The lower path feeds and into a NAND gate, producing , which is carried on to the output gate. The upper path delivers itself to the output gate. The output gate takes the AND of these two, so . This is only when and , and otherwise, giving outputs for .
