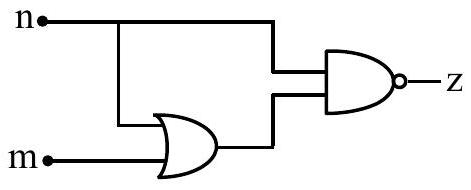

For the given logic gate circuit, which of the following is the correct truth table?
  1. (A)n | m | z
    0 | 0 | 1
    0 | 1 | 0
    1 | 1 | 0
    1 | 0 | 0
  2. (B)n | m | z
    0 | 0 | 0
    0 | 1 | 1
    1 | 1 | 0
    1 | 0 | 1
  3. (C)n | m | z
    0 | 0 | 1
    0 | 1 | 0
    1 | 1 | 1
    1 | 0 | 0
  4. (D)n | m | z
    0 | 0 | 1
    0 | 1 | 1
    1 | 1 | 0
    1 | 0 | 0
    ✓ Correct

Answer: (D)

Solution

The inputs and feed an OR gate whose output is . This output together with the line forms the inputs of a NAND gate, so . By the absorption law , hence . The output is when and when , independent of , giving the truth table .
