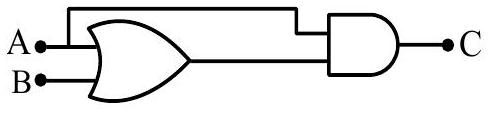

The truth table corresponding to the circuit given below is
  1. (A)A=0, B=0, C=0; A=1, B=0, C=0; A=0, B=1, C=0; A=1, B=1, C=1
  2. (B)A=0, B=0, C=0; A=0, B=1, C=0; A=1, B=0, C=1; A=1, B=1, C=1✓ Correct
  3. (C)A=0, B=0, C=1; A=1, B=0, C=0; A=0, B=1, C=0; A=1, B=1, C=0
  4. (D)A=0, B=0, C=1; A=0, B=1, C=0; A=1, B=0, C=0; A=1, B=1, C=0

Answer: (B)

Solution

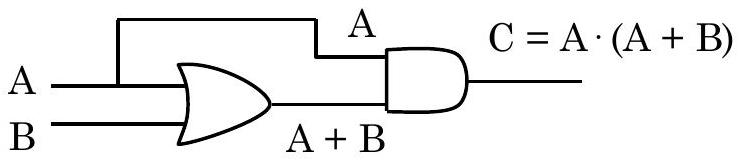

The two inputs first pass through an OR gate to give , and this output is fed to an AND gate together with itself, so . By absorption this reduces to , independent of . Checking the four combinations, and give , while and give . The output therefore follows input : for .
