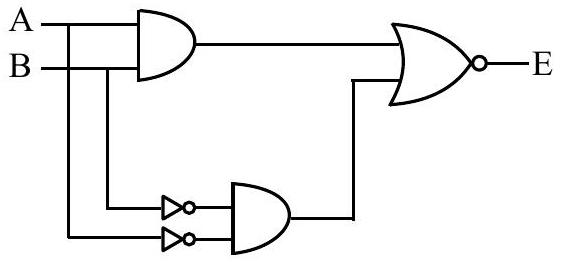

In the truth table of the above circuit the value of X and Y are :
  1. (A)1,1✓ Correct
  2. (B)1,0
  3. (C)0,1
  4. (D)0,0

Answer: (A)

Solution

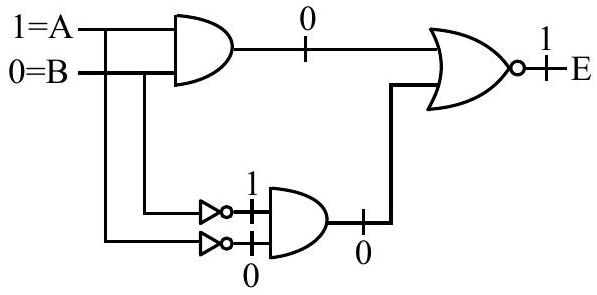

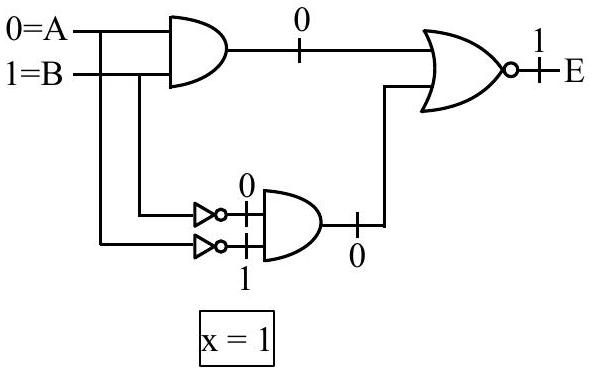

Tracing the given logic circuit for each input row: for , the output evaluates to ; for , the output evaluates to .

So .
