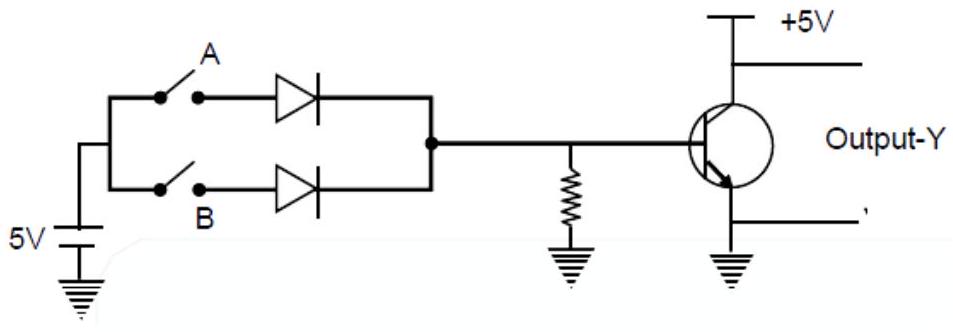

Boolean relation at the output state-Y for the following circuits is:
  1. (A)✓ Correct
  2. (B)
  3. (C)
  4. (D)

Answer: (A)

Solution

An OR gate followed by a NOT gate behaves as a NOR gate. The OR output is , and inverting it gives , which by De Morgan's law is .
