JEE Main · 2021 · 16 Mar 2021 · Shift 1 · Semiconductors

WhatsApp Email

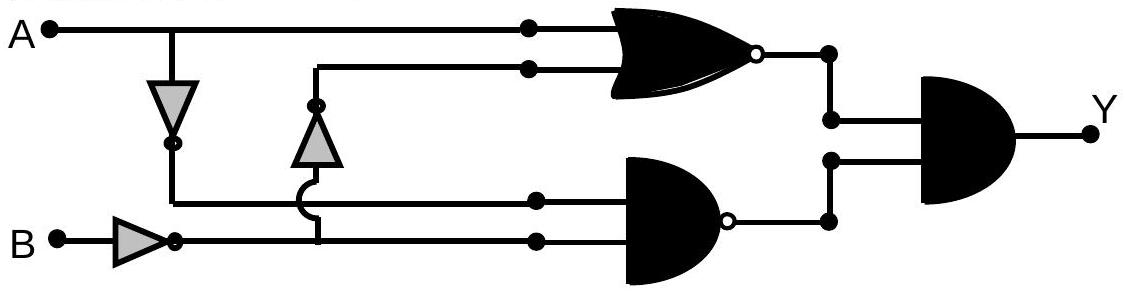

In the logic circuit shown in the figure, if input A and B are 0 to 1 respectively, then output at Y would be ' x '.
The value of is ____

Answer: 0

Solution

The inverter fed by puts on one rail and the inverter fed by puts on the other. The upright inverter draws its input from the rail, its lead hopping over the rail without joining it, and so restores . The NOR gate therefore receives and , while the NAND gate receives and .
With and , the NOR gate gives and the NAND gate gives . The AND gate at the output combines them:

The output is .

JEE Main · 2021 · 16 Mar 2021 · Shift 1 · Integer answer
