JEE Main · 2026 · 23 Jan 2026 · Shift 1 · Elasticity & SHM

WhatsApp Email

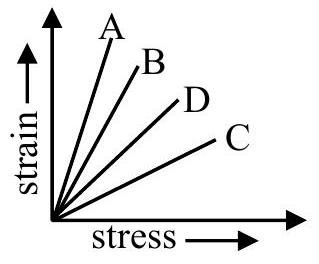

The strain-stress plot for materials A, B, C and D is shown in the figure. Which material has the largest Young's modulus?

(A)C✓ Correct
(B)D
(C)A
(D)B

Answer: (A)

Solution

Young's modulus is

Y = \frac{stress}{strain}

. In this plot strain is on the vertical axis and stress on the horizontal axis, so the slope of each line is

\frac{strain}{stress} = \frac{1}{Y}

; the line with the smallest slope corresponds to the largest modulus. Line

C

has the smallest slope, so material

C

has the largest Young's modulus.

JEE Main · 2026 · 23 Jan 2026 · Shift 1 · Single correct option
