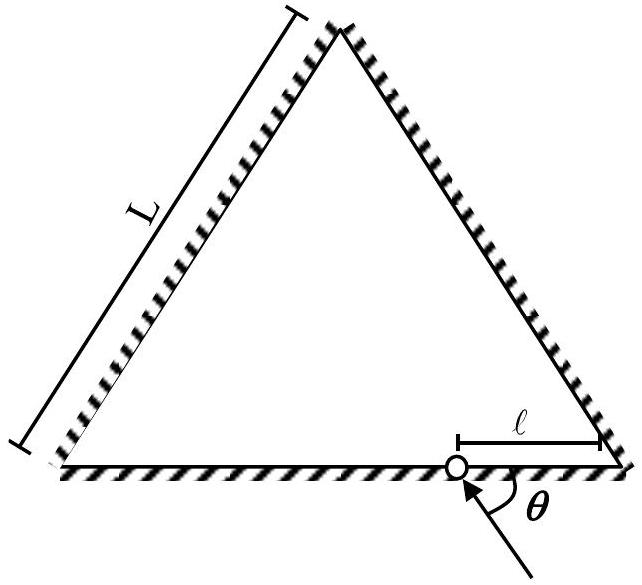

Three plane mirrors form an equilateral triangle with each side of length L. There is a small hole at a distance l>0 from one of the corners as shown in the figure. A ray of light is passed through the hole at an angle θ and can only come out through the same hole. The cross section of the mirror configuration and the ray of light lie on the same plane.
Which of the following statement(s) is(are) correct?
(A)The ray of light will come out for θ=30∘, for 0<l<L.✓ Correct
(B)There is an angle for l=2L at which the ray of light will come out after two reflections.✓ Correct
(C)The ray of light will NEVER come out for θ=60∘, and l=3L.
(D)The ray of light will come out for θ=60∘, and 0<l<2L after six reflections.
Answer: (A), (B)
Solution

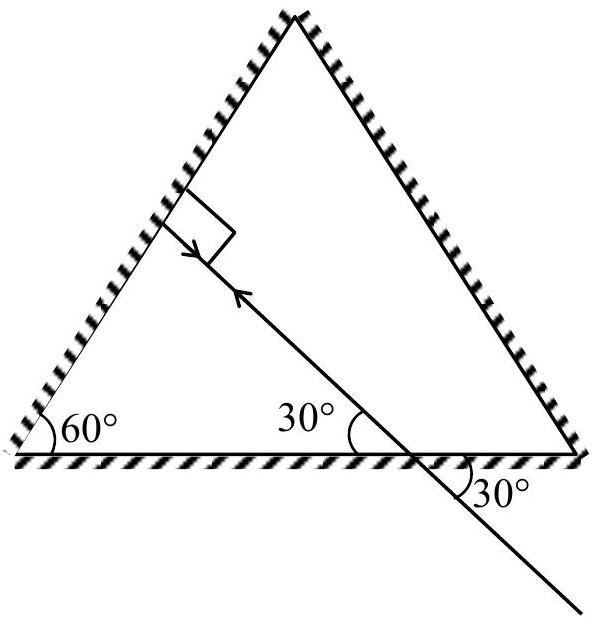

(A) For θ=30° and 0<l<L, the ray undergoes one reflection and returns through the hole. Correct.

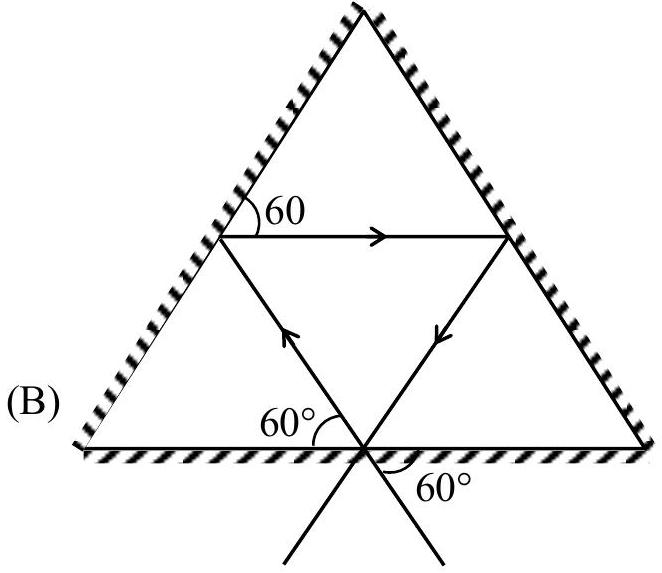

(B) For l=L/2 and θ=60°, by symmetry the ray undergoes two reflections and returns through the hole. Correct.

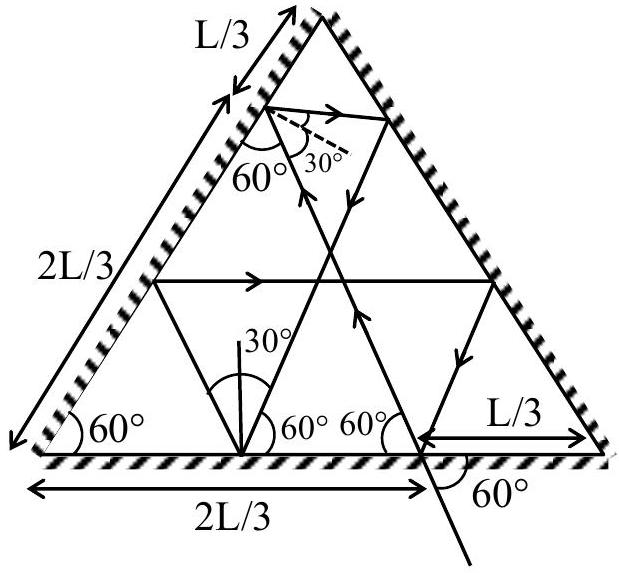

(C) For l=L/3 and θ=60°, the ray actually comes out after five reflections, not never. Incorrect.

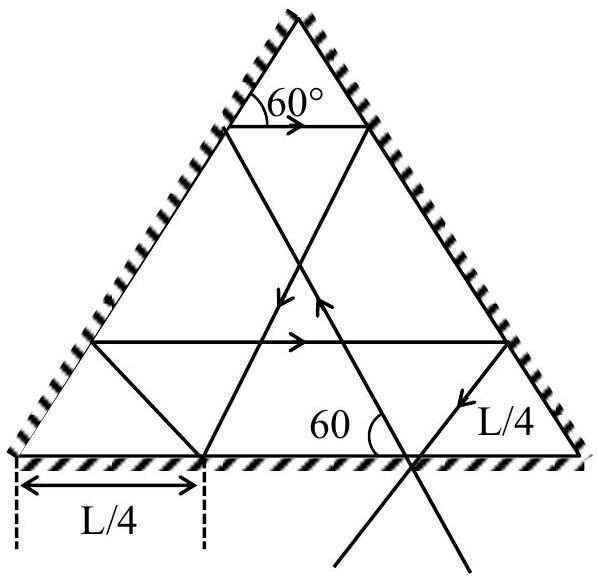

(D) For θ=60° and 0<l<L/2, the ray comes out after five reflections, not six. Incorrect.
JEE Advanced · 2022 · 28 Aug 2022 · Paper 1 · One or more correct options
