The sum of number of lone pairs of electrons present on the central atoms of , and is ____
Answer: 3
Solution
For : Xe has 8 valence electrons, forms 3 double bonds with O (using 6 electrons), leaving 1 lone pair.
For : Xe has 8 valence electrons, forms 1 double bond with O and 4 single bonds with F (using 6 electrons), leaving 1 lone pair.
For : Xe has 8 valence electrons, forms 6 single bonds with F (using 6 electrons), leaving 1 lone pair.
Total = 1 + 1 + 1 = 3.
XeO3 structure
XeOF4 structure

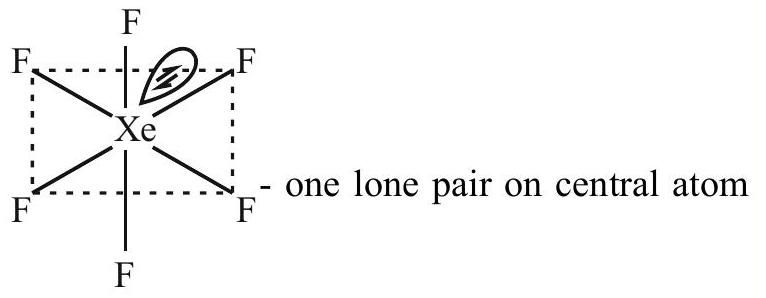

XeF6 structure
For : Xe has 8 valence electrons, forms 1 double bond with O and 4 single bonds with F (using 6 electrons), leaving 1 lone pair.
For : Xe has 8 valence electrons, forms 6 single bonds with F (using 6 electrons), leaving 1 lone pair.
Total = 1 + 1 + 1 = 3.



JEE Main · 2022 · 25 Jul 2022 · Shift 2 · Integer answer
