JEE Main · 2024 · 09 Apr 2024 · Shift 2 · Laws of Motion

WhatsApp Email

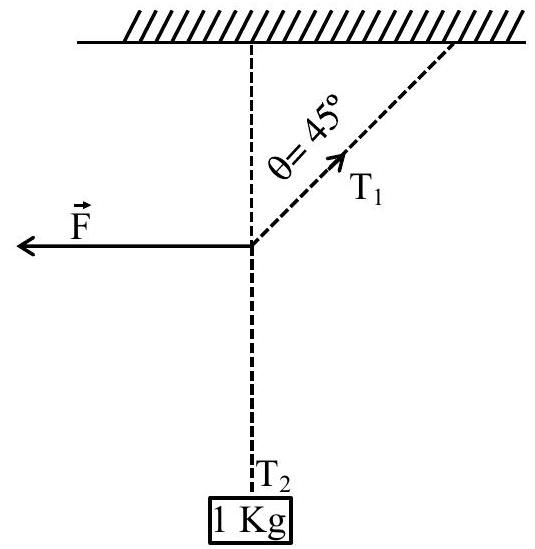

A 1 kg mass is suspended from the ceiling by a rope of length 4 m . A horizontal force ' F ' is applied at the mid point of the rope so that the rope makes an angle of

4 5^{\circ}

with respect to the vertical axis as shown in figure. The magnitude of F is :

(A) $\frac{10}{2} N$
(B)1 N
(C) $\frac{1}{10 \times 2} N$
(D)10 N✓ Correct

Answer: (D)

Solution

At the midpoint of the rope, the horizontal force

F

and the two tension segments (each making

4 5^{\circ}

with the vertical) balance; the tension in the lower segment supports the hanging mass, so

T_{2} = m g = 10

N, and by symmetry of the

4 5^{\circ}

angle,

F = T_{2} tan 4 5^{\circ} = 10 N
