JEE Advanced · 2012 · 08 Apr 2012 · Paper 2 · Kinematics

Two identical discs of same radius

R

are rotating about their axes in opposite directions with the same constant angular speed

ω

. The discs are in the same horizontal plane. At time

t = 0

, the points

P

and

Q

are facing each other as shown in the figure. The relative speed between the two points

P

and

Q

v_{r}

. In one time period

(T)

of rotation of the discs,

v_{r}

as a function of time is best represented by

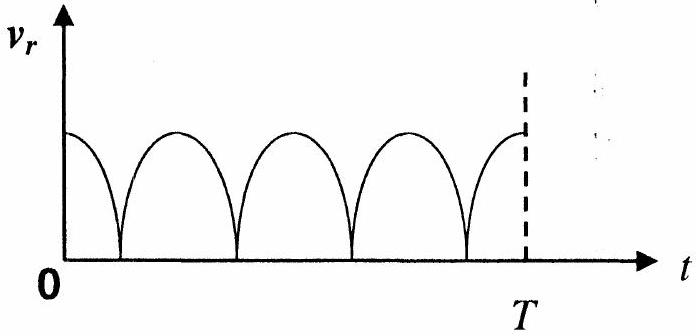

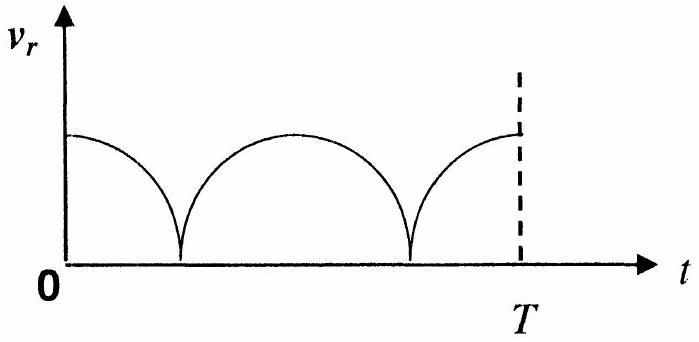

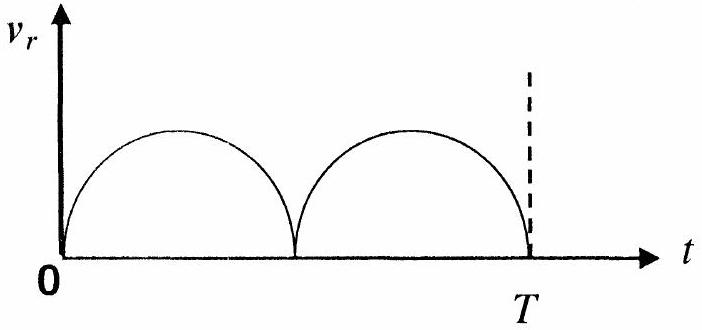

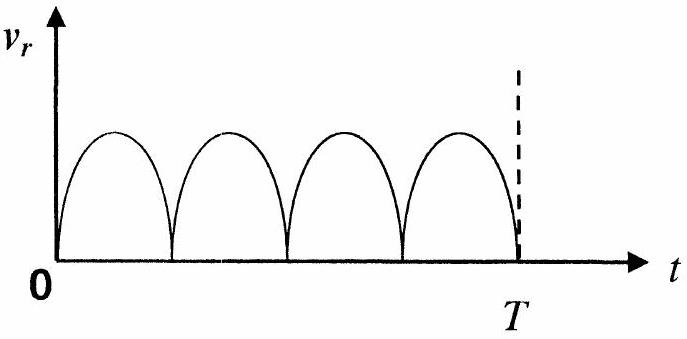

(A)(see structure)
✓ Correct
(B)(see structure)
(C)(see structure)
(D)(see structure)

Answer: (A)

Solution

t = 0

, points

P

and

Q

are facing each other with velocities in opposite directions, giving maximum relative speed

v_{r} = 2 R ω

. As the discs rotate, the relative speed varies periodically. When the points are aligned along the line joining centers (twice per rotation),

v_{r}

is maximum. When perpendicular to this line (also twice per rotation),

v_{r}

is minimum (zero if they're at the same angular position relative to the line of centers). Option (A) shows this periodic variation with two maxima and two minima per period.
