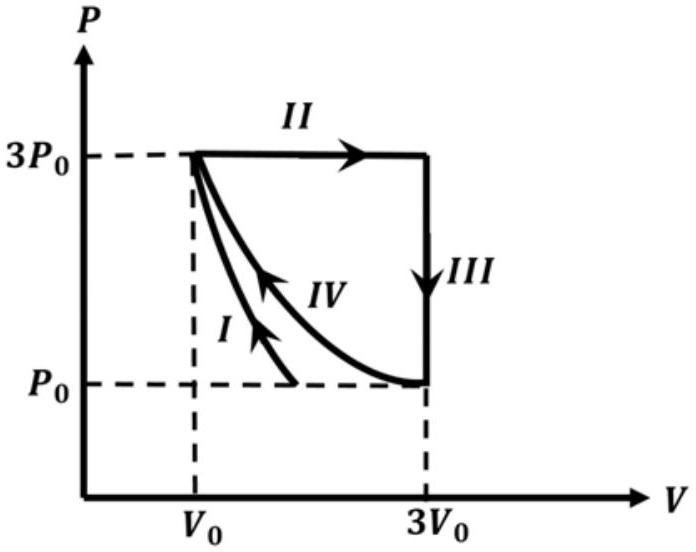

One mole of a monatomic ideal gas undergoes four thermodynamic processes as shown schematically in the $PV$-diagram below. Among these four processes, one is isobaric, one is isochoric, one is isothermal and one is adiabatic. Match the processes mentioned in List-1 with the corresponding statements in List-II.

LIST-I
(P) In process I
(Q) In process II
(R) In process III
(S) In process IV

LIST-II
(1) Work done by the gas is zero
(2) Temperature of the gas remains unchanged
(3) No heat is exchanged between the gas and its surroundings
(4) Work done by the gas is $6 P_{0} V_{0}$

Accepted Answer

(C) $\mathbf{P} \rightarrow \mathbf{3} ; \mathbf{Q} \rightarrow \mathbf{4} ; \mathbf{R} \rightarrow \mathbf{1} ; \mathbf{S} \rightarrow \mathbf{2}$

Answer

(A) $\mathbf{P} \rightarrow \mathbf{4} ; \mathbf{Q} \rightarrow \mathbf{3} ; \mathbf{R} \rightarrow \mathbf{1} ; \mathbf{S} \rightarrow \mathbf{2}$

Answer

(B) $\mathbf{P} \rightarrow \mathbf{1} ; \mathbf{Q} \rightarrow \mathbf{3 ; ~ R} \rightarrow \mathbf{2} ; \mathbf{S} \rightarrow \mathbf{4}$

Answer

(D) $\mathbf{P} \rightarrow \mathbf{3} ; \mathbf{Q} \rightarrow \mathbf{4} ; \mathbf{R} \rightarrow \mathbf{2} ; \mathbf{S} \rightarrow \mathbf{1}$

JEE Advanced · 2018 · 20 May 2018 · Paper 2 · Heat & Thermodynamics
