JEE Main · 2022 · 24 Jun 2022 · Shift 2 · Circle

Let a circle

C : (x - h)^{2} + (y - k)^{2} = r^{2}, k > 0

, touch the x-axis at

(1, 0)

. If the line

x + y = 0

intersects the circle C at P and Q such that the length of the chord PQ is 2, then the value of

h + k + r

is equal to ____.

Answer: 7

Solution

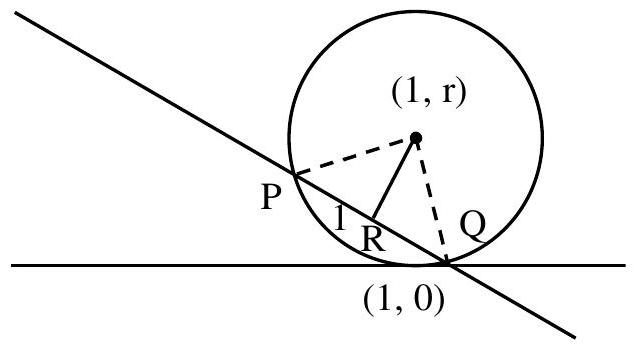

Since the circle touches the x-axis at

(1, 0)

, we have

h = 1

and

k = r

(the center is at

(1, r)

with radius

r

).

The perpendicular distance from center

(1, r)

to the line

x + y = 0

is:

d = \frac{∣1 + r ∣}{2} = \frac{1 + r}{2}

Using the chord-distance formula with chord length

P Q = 2

r^{2} = d^{2} + 1^{2} = \frac{( 1 + r ) ^{2}}{2} + 1

2 r^{2} = (1 + r)^{2} + 2 = 1 + 2 r + r^{2} + 2

r^{2} - 2 r - 3 = 0 \Rightarrow (r - 3) (r + 1) = 0

Since

r > 0

, we have

r = 3

.

Therefore,

h + k + r = 1 + 3 + 3 = 7
