JEE Main · 2022 · 27 Jun 2022 · Shift 1 · Circle

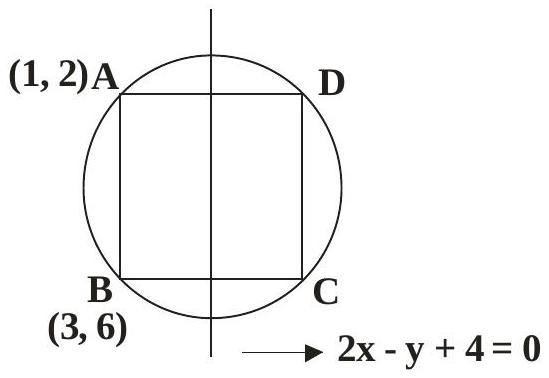

A rectangle R with end points of one of its sides as

(1, 2)

and

(3, 6)

is inscribed in a circle. If the equation of a diameter of the circle is

2 x - y + 4 = 0

, then the area of R is ______.

Answer: 16

Solution

The side AB has endpoints

(1, 2)

and

(3, 6)

. The equation of line AB is:

\frac{y - 2}{x - 1} = \frac{6 - 2}{3 - 1} = 2 \Rightarrow y = 2 x

The given diameter has equation

2 x - y + 4 = 0

, or

y = 2 x + 4

, which has slope 2.

Since the diameter is parallel to AB (both have slope 2), the perpendicular distance between them gives half the width of the rectangle:

d = \frac{∣4∣}{2 ^{2} + 1 ^{2}} = \frac{4}{5}

So the width

B C = 2 d = \frac{8}{5}

.

The length

A B = (3 - 1)^{2} + (6 - 2)^{2} = 4 + 16 = 25

.

Area

= A B \times B C = 25 \times \frac{8}{5} = 16
