JEE Main · 2022 · 29 Jul 2022 · Shift 2 · Laws of Motion

Two bodies of masses

m_{1} = 5 kg

and

m_{2} = 3 kg

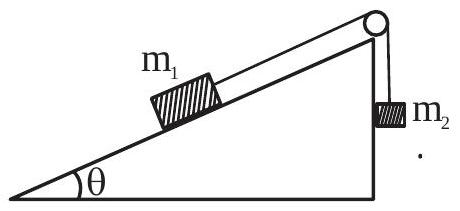

are connected by a light string going over a smooth light pulley on a smooth inclined plane as shown in the figure. The system is at rest. The force exerted by the inclined plane on the body of mass

m_{1}

will be :

[

Take

g = 10 ms^{- 2}]

(A)30 N
(B)40 N✓ Correct
(C)50 N
(D)60 N

Answer: (B)

Solution

For the system to be in equilibrium, the tension in the string must balance the component of

m_{1}

's weight along the incline:

m_{2} g = m_{1} g sin θ

Solving for

sin θ

sin θ = \frac{m _{2}}{m _{1}} = \frac{3}{5}

Therefore:

cos θ = \frac{4}{5}

The normal force exerted by the inclined plane on

m_{1}

is:

N = m_{1} g cos θ = 5 \times 10 \times \frac{4}{5} = 40 N

The answer is (B) 40 N.
