JEE Advanced · 2022 · 28 Aug 2022 · Paper 1 · Rotational Mechanics

A solid sphere of mass

1 k g

and radius

1 m

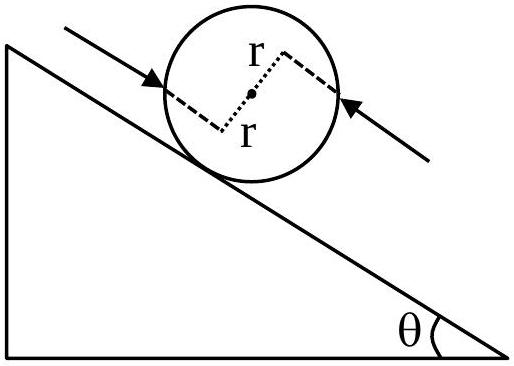

rolls without slipping on a fixed inclined plane with an angle of inclination

θ = 3 0^{\circ}

from the horizontal. Two forces of magnitude

1 N

each, parallel to the incline, act on the sphere, both at distance

r = 0.5 m

from the center of the sphere, as shown in the figure. The acceleration of the sphere down the plane is ____

m s^{- 2}

. (Take

g = 10 m s^{- 2}

Answer: 2.86

Solution

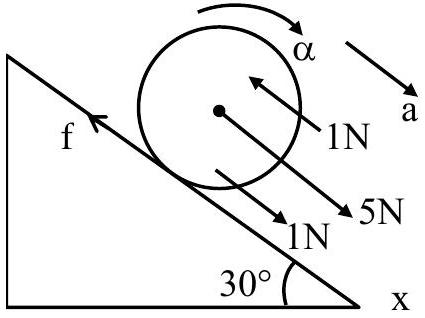

Forces along the incline:

m g sin 30° + 1 - 1 - f = ma

5 - f = a

Torque about center of mass:

f \times 1 - 2 (1 \times 0.5) = I α = \frac{2}{5} m r^{2} \times \frac{a}{r}

f - 1 = \frac{2}{5} a

f = 1 + \frac{2 a}{5}

Substituting:

5 - a = 1 + \frac{2 a}{5}

4 = \frac{7 a}{5}

a = \frac{20}{7} = 2.86 m / s^{2}

JEE Advanced · 2022 · 28 Aug 2022 · Paper 1 · Numerical answer
