JEE Main · 2010 · 11 Apr 2010 · Offline · Conservation of Momentum

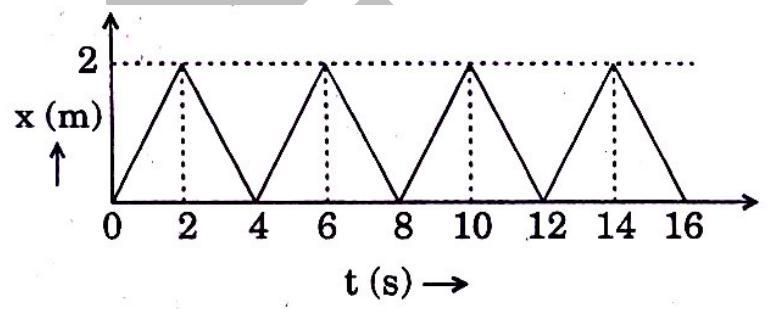

The figure shows the position - time

(x - t)

graph of one-dimensional motion of a body of mass 0.4 kg . The magnitude of each impulse is

(A)0.4 Ns
(B)0.8 Ns✓ Correct
(C)1.6 Ns
(D)0.2 Ns

Answer: (B)

Solution

The position-time graph is built from straight segments, so the body moves at a constant speed equal to the slope, reversing its velocity at each kink where an impulse acts. Reading the slopes, the speed is

1

m/s, with the velocity turning from

+ 1

m/s to

- 1

m/s. The impulse equals the change in momentum,

J = m Δ v = 0.4 \times (1 - (- 1)) = 0.4 \times 2 = 0.8

N s in magnitude.
