The value of current

i_{1}

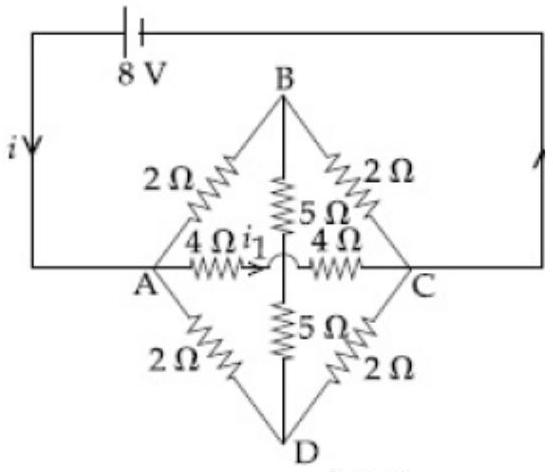

flowing from A to C in the circuit diagram is:

Answer: (D)

Solution

Reducing the network between

A

and

C

leaves an effective resistance of

8 Ω

across the

8 V

developed between those points, so the current in that branch is

i_{1} = \frac{V}{R} = \frac{8}{8} = 1 A

from

A

C
