JEE Main · 2020 · 09 Jan 2020 · Shift 2 · Current Electricity

WhatsApp Email

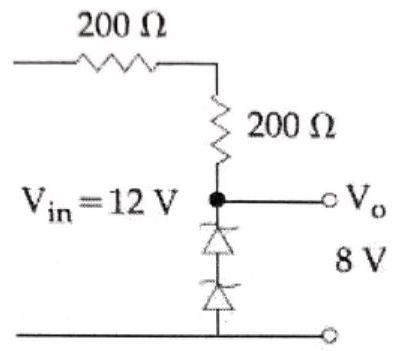

The circuit as shown in figure is working as a 8 V dc regulated voltage source. When 12 V is used as input, the power dissipated (in mW) in each diode is (considering both zener diodes are identical) ____.

Answer: 40

Solution

The two identical Zener diodes in series clamp the output at

8 V

, so with a

12 V

input the surplus

12 - 8 = 4 V

falls across the series resistance. With the

400 Ω

in the regulating branch the current is

i = \frac{4}{400} = 0.01 A = 10 mA

, and this same current flows through each diode, which holds

4 V

across it. The power dissipated in each diode is therefore

P = V i = 4 \times 0.01 = 0.04 W = 40 mW
