JEE Main · 2021 · 27 Jul 2021 · Shift 2 · Rotational Mechanics

WhatsApp Email

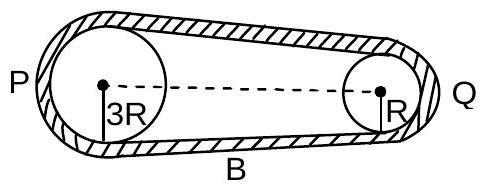

In the given figure, two wheels P and Q are connected by a belt B . The radius of P is three times as that of Q . In case of same rotational kinetic energy, the ratio of rotational inertias

(\frac{I _{1}}{I _{2}})

will be

x : 1

. The value of

x

will
be ____ .

Answer: 9

Solution

The belt does not slip, so the rim speeds of the two wheels are equal:

ω_{P} R_{P} = ω_{Q} R_{Q}

With

R_{P} = 3 R_{Q}

this gives

ω_{P} = \frac{ω _{Q}}{3}

. Equal rotational kinetic energies require

\frac{1}{2} I_{1} ω_{P}^{2} = \frac{1}{2} I_{2} ω_{Q}^{2}

\frac{I _{1}}{I _{2}} = \frac{ω _{Q}^{2}}{ω _{P}^{2}} = 9

The rotational inertias are in the ratio

9 : 1

, so

x = 9

JEE Main · 2021 · 27 Jul 2021 · Shift 2 · Integer answer

Practise more: all JEE Main PYQs on Rotational Mechanics →
