JEE Main · 2021 · 27 Aug 2021 · Shift 1 · Current Electricity

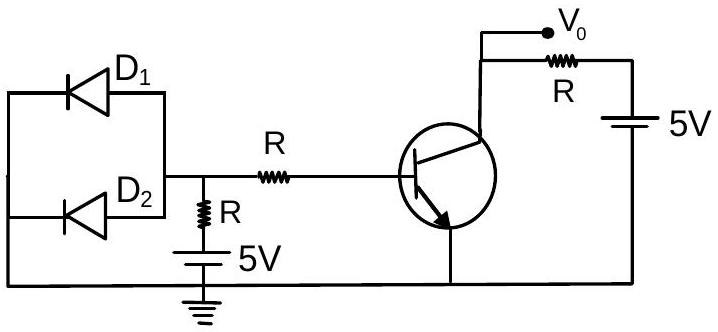

A circuit is arranged as shown in figure. The output voltage

V_{O}

is equal to ______ V.

Answer: 5

Solution

In the steady state the input-diode network holds the base at a low potential, so the base–emitter junction is not forward biased and the transistor stays in cut-off. With no collector current there is no voltage drop across the collector resistor, and the output terminal sits at the collector supply potential. The output voltage is therefore

V_{O} = 5
