JEE Main · 2021 · 20 Jul 2021 · Shift 1 · Current Electricity

WhatsApp Email

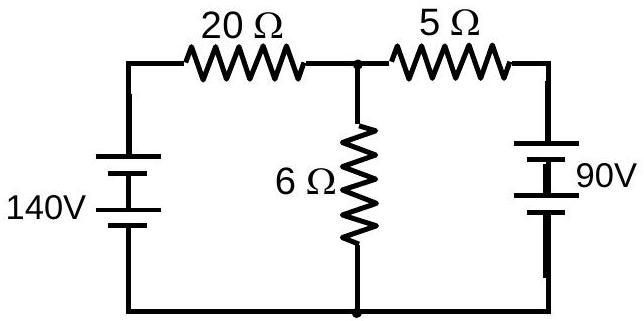

The value of current in the resistance is :
  1. (A)6 A
  2. (B)10 A✓ Correct
  3. (C)4 A
  4. (D)8 A

Answer: (B)

Solution

Take the lower rail as the zero of potential and let be the potential of the junction at the top of the resistor. Both sources feed that junction through their series resistances, and the whole of the current leaves through the branch:

Multiplying through by gives , so and V. The current in the resistor is A.

JEE Main · 2021 · 20 Jul 2021 · Shift 1 · Single correct option
