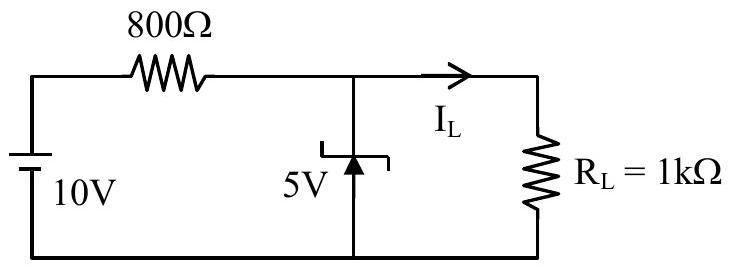

In the given circuit- the value of current $\mathrm{I}_{\mathrm{L}}$ will be $\_\_\_\_$ mA. (When $\mathrm{R}_{\mathrm{L}}=1 \mathrm{k} \Omega$)

JEE Main · 2022 · 24 Jun 2022 · Shift 2 · Current Electricity

In the given circuit- the value of current

I_{L}

will be

____

mA.
(When

R_{L} = 1 k Ω

)

Answer: 5

Using Ohm's law, the current through the load resistor is given by

I_{L} = \frac{V}{R _{L}}

. From the circuit diagram, the voltage across the load is 5V. Therefore,

I_{L} = \frac{5 V}{1000 Ω} = 5 \times 1 0^{- 3} A = 5 mA

JEE Main · 2022 · 24 Jun 2022 · Shift 2 · Integer answer
