JEE Main · 2022 · 27 Jun 2022 · Shift 1 · Current Electricity

WhatsApp Email

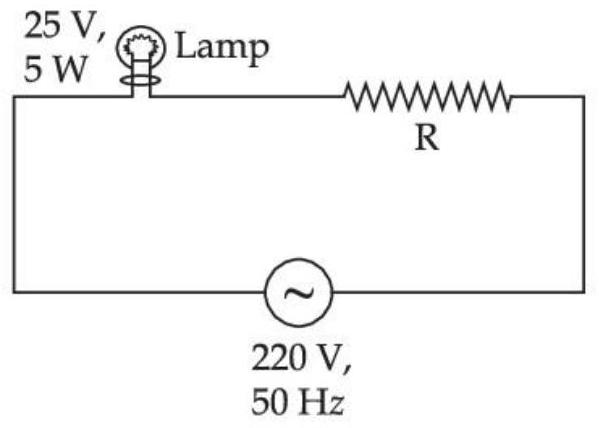

220 V, 50 Hz AC

source is connected to a 25 V , 5 W lamp and an additional resistance R in series (as shown in figure) to run the lamp at its peak brightness, then the value of R (in ohm) will be ____。

Answer: 975

Solution

For the lamp to run at peak brightness, it must operate at rated values:

P = 5

V = 25

V. Current through lamp:

i = \frac{P}{V} = \frac{5}{25} = 0.2

A. Voltage across R:

V_{R} = 220 - 25 = 195

V. Therefore

R = \frac{V _{R}}{i} = \frac{195}{0.2} = 975

Ω.

JEE Main · 2022 · 27 Jun 2022 · Shift 1 · Integer answer
