JEE Main · 2022 · 28 Jul 2022 · Shift 1 · Rotational Mechanics

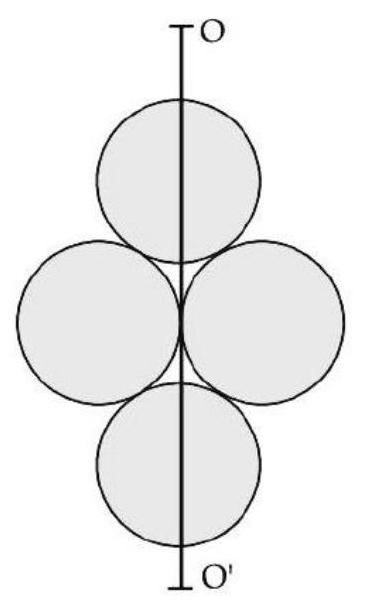

Four identical discs each of mass '

M

' and diameter '

a

' are arranged in a small plane as shown in figure. If the moment of inertia of the system about OO

^{'}

\frac{x}{4} M a^{2}

. Then, the value of

x

will be _____.

Answer: 3

Solution

Each disc has radius

\frac{a}{2}

. The two discs whose centres lie on the axis

O O^{'}

rotate about an in-plane diameter and contribute

\frac{1}{4} M (\frac{a}{2})^{2} = \frac{M a ^{2}}{16}

each. The other two discs have centres a distance

\frac{a}{2}

from

O O^{'}

, so by the parallel-axis theorem each contributes

\frac{1}{4} M (\frac{a}{2})^{2} + M (\frac{a}{2})^{2} = \frac{5 M a ^{2}}{16}

. Summing the four,

I = 2 \cdot \frac{M a ^{2}}{16} + 2 \cdot \frac{5 M a ^{2}}{16} = \frac{12 M a ^{2}}{16} = \frac{3 M a ^{2}}{4}

, so

x = 3
