JEE Main · 2023 · 25 Jan 2023 · Shift 1 · Kinematics

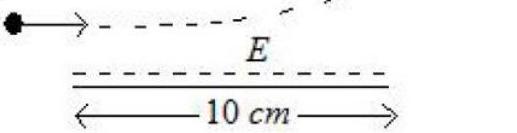

A uniform electric field of

10 N/C

is created between two parallel charged plates (as shown in figure). An electron enters the field symmetrically between the plates with a kinetic energy 0.5 eV. The length of each plate is 10 cm. The angle (

θ

) of deviation of the path of electron as it comes out of the field is ______ (in degree).

Answer: 45

Solution

The electron enters along the plates with horizontal kinetic energy

\frac{1}{2} m v_{x}^{2} = 0.5 e

, so

v_{x}^{2} = \frac{e}{m}

. While crossing the length

L

it gains a transverse velocity

v_{y} = \frac{e E}{m} \cdot \frac{L}{v _{x}}

. The deflection obeys

tan θ = \frac{v _{y}}{v _{x}} = \frac{e E L}{m v _{x}^{2}} = \frac{e E L}{e} = E L = 10 \times 0.1 = 1

. The path leaves the field turned through

θ = 4 5^{\circ}

JEE Main · 2023 · 25 Jan 2023 · Shift 1 · Integer answer
