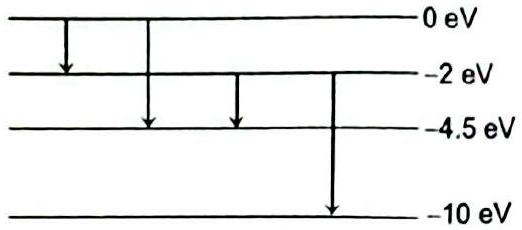

(a) The energy levels of an atom are as shown in the figure. Which of the transitions shown will result in the emission of a photon of wavelength 275 nm? (b) Which transition corresponds to the emission of radiation of maximum wavelength?
Answer: (a) Transition with ΔE=4.5 eV (B). (b) Smallest-gap transition (A).
Solution
The photon energy for wavelength 275nm is
E=λhc=275nm1240eVnm≈4.5eV.
(a) Computing ΔE for the marked transitions (levels at 0,−2,−4.5,−10eV): the transition from the 0 eV level to the −4.5 eV level gives ΔE=4.5eV (λ≈275nm) — this is transition B. (b) Maximum wavelength corresponds to minimum energy. The smallest gap, 0→−2eV (ΔE=2eV, λ≈620nm), is transition A, which gives the maximum wavelength.
(a) transition B (275nm); (b) transition A (max λ)
