Draw a simple circuit of a CE transistor amplifier. Explain its working. Show that the voltage gain of the amplifier is given by , where is the current gain, is the load resistance and is the input resistance. What is the significance of the negative sign in the expression for the voltage gain?

Solution

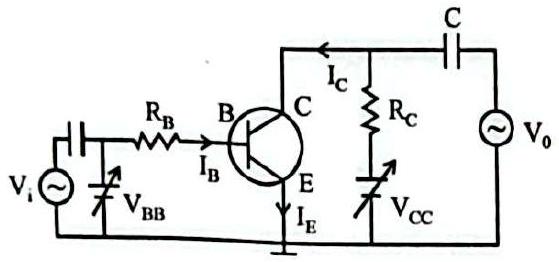

Circuit: n-p-n transistor in CE configuration, base-emitter junction forward biased, collector fed through the load , signal applied at the base.
Working: the input signal changes and hence the base current; this produces a -times larger change in collector current.
For an input signal , the base-current change is

and the collector-current change is .
The output voltage is the drop this produces across :

Hence

The negative sign shows the output is out of phase with the input.
