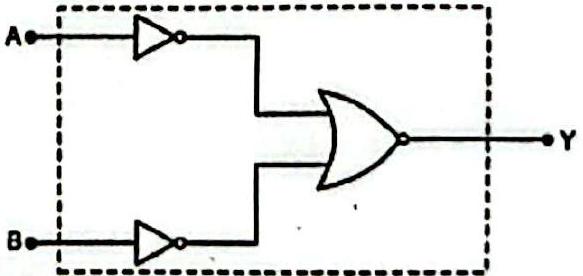

Identify the gate equivalent to the 'dotted box' shown in the figure and give its symbol and truth table.

Solution

Each input is inverted and the inverted signals feed a NOR gate, so

Y = \overline{\overline{A} + \overline{B}} = \overline{\overline{A}} \cdot \overline{\overline{B}} = A \cdot B .

Hence the box is an AND gate (D-shaped symbol).
Truth table:

00 \to 0, 10 \to 0, 01 \to 0, 11 \to 1

.

Y = A \cdot B (AND)
