Give the logic symbol of a NAND gate.

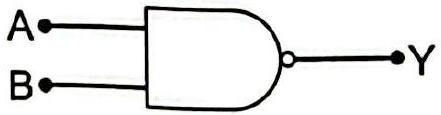

Answer: The NAND symbol is the AND-gate (D-shaped) symbol with a small circle (bubble) at its output.

Solution

A NAND gate is an AND gate followed by inversion.
Its symbol is therefore the standard D-shaped AND-gate symbol with a small circle (the inversion bubble) added at the output; it realises .
