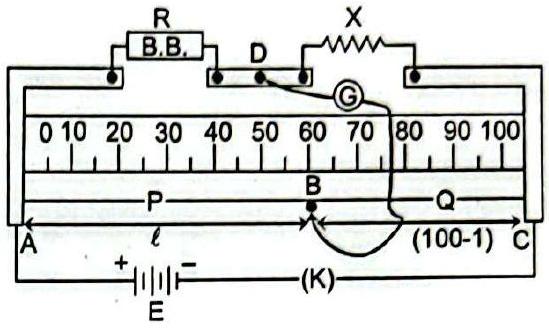

Draw a circuit diagram using a metre bridge and write the mathematical relation used to determine the value of an unknown resistance. Why cannot such an arrangement be used for measuring very low resistances?

Solution

A metre bridge is a Wheatstone bridge with a 1 m wire. With the known resistance

R

in one gap and the unknown

X

in the other, at the null point

\frac{R}{X} = \frac{ℓ}{100 - ℓ} \Rightarrow X = R \frac{100 - ℓ}{ℓ}

. For very small

X

the fixed end/contact resistances are no longer negligible compared with

X

, so the result is unreliable.
