Using Gauss's law deduce the expression for the electric field due to a uniformly charged spherical conducting shell of radius

R

at a point
(i) outside and
(ii) inside the shell. Plot a graph showing the variation of electric field as a function of

r > R

and

r < R

(

r

being the distance from the centre of the shell).

Solution

Take a concentric spherical Gaussian surface of radius

r

.
(i) For

r > R

the enclosed charge is

q

E (4 π r^{2}) = \frac{q}{ε _{0}} \Rightarrow E = \frac{1}{4 π ε _{0}} \frac{q}{r ^{2}}

(ii) For

r < R

the enclosed charge is zero:

E = 0

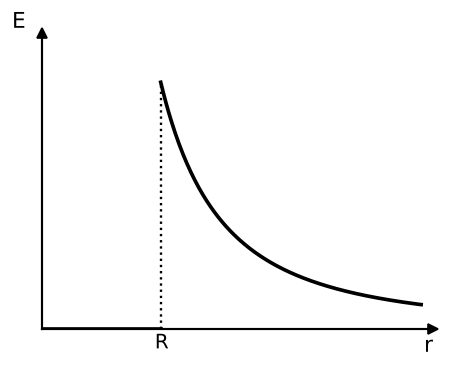

The field is zero inside, jumps to

\frac{1}{4 π ε _{0}} \frac{q}{R ^{2}}

r = R

, then falls as

1/ r^{2}

outside.
